外观模式

外观模式UML类图

外观模式java实现

/**
 * DwarvenMineWorker is one of the goldmine subsystems.
 DwarvenMineWorker(矮人矿工)是金矿子系统之一。
 */
public abstract class DwarvenMineWorker {

  private static final Logger LOGGER = LoggerFactory.getLogger(DwarvenMineWorker.class);

  public void goToSleep() {
    LOGGER.info("{} goes to sleep.", name());
  }

  public void wakeUp() {
    LOGGER.info("{} wakes up.", name());
  }

  public void goHome() {
    LOGGER.info("{} goes home.", name());
  }

  public void goToMine() {
    LOGGER.info("{} goes to the mine.", name());
  }

  private void action(Action action) {
    switch (action) {
      case GO_TO_SLEEP:
        goToSleep();
        break;
      case WAKE_UP:
        wakeUp();
        break;
      case GO_HOME:
        goHome();
        break;
      case GO_TO_MINE:
        goToMine();
        break;
      case WORK:
        work();
        break;
      default:
        LOGGER.info("Undefined action");
        break;
    }
  }

  /**
   * Perform actions.
   */
  public void action(Action... actions) {
    Arrays.stream(actions).forEach(this::action);
  }

  public abstract void work();

  public abstract String name();

  enum Action {
    GO_TO_SLEEP, WAKE_UP, GO_HOME, GO_TO_MINE, WORK
  }
}

/**
 * DwarvenGoldDigger is one of the goldmine subsystems.
 DwarvenGoldDigger(矮人金矿)是金矿子系统之一。
 */
public class DwarvenGoldDigger extends DwarvenMineWorker {

  private static final Logger LOGGER = LoggerFactory.getLogger(DwarvenGoldDigger.class);

  @Override
  public void work() {
    //挖金。
    LOGGER.info("{} digs for gold.", name());
  }

  @Override
  public String name() {
    //矮人淘金者
    return "Dwarf gold digger";
  }
}

/**
 * DwarvenTunnelDigger is one of the goldmine subsystems.
 DwarvenTunnelDigger(矮人隧道挖掘者)是金矿子系统之一。
 */
public class DwarvenTunnelDigger extends DwarvenMineWorker {

  private static final Logger LOGGER = LoggerFactory.getLogger(DwarvenTunnelDigger.class);

  @Override
  public void work() {
    //创造另一个有希望的隧道
    LOGGER.info("{} creates another promising tunnel.", name());
  }

  @Override
  public String name() {
    //矮人隧道挖掘机
    return "Dwarven tunnel digger";
  }
}

/**
 * DwarvenCartOperator is one of the goldmine subsystems.
 DwarvenCartOperator(矮人推车运营商)是金矿子系统之一。
 */
public class DwarvenCartOperator extends DwarvenMineWorker {

  private static final Logger LOGGER = LoggerFactory.getLogger(DwarvenCartOperator.class);

  @Override
  public void work() {
    //将金块从矿山中移出
    LOGGER.info("{} moves gold chunks out of the mine.", name());
  }

  @Override
  public String name() {
    //矮推车操作员
    return "Dwarf cart operator";
  }
}

/**
 * DwarvenGoldmineFacade provides a single interface through which users can operate the
 * subsystems.
 *
 * <p>This makes the goldmine easier to operate and cuts the dependencies from the goldmine user to
 * the subsystems.
 DwarvenGoldmineFacade提供了一个界面，用户可以通过该界面来操作子系统。
<p>这使金矿更易于操作，并减少了金矿用户与子系统之间的依赖关系。
 */
public class DwarvenGoldmineFacade {

  private final List<DwarvenMineWorker> workers;

  /**
   * Constructor.
   */
  public DwarvenGoldmineFacade() {
    workers = List.of(
        new DwarvenGoldDigger(),
        new DwarvenCartOperator(),
        new DwarvenTunnelDigger());
  }

  public void startNewDay() {
    makeActions(workers, DwarvenMineWorker.Action.WAKE_UP, DwarvenMineWorker.Action.GO_TO_MINE);
  }

  public void digOutGold() {
    makeActions(workers, DwarvenMineWorker.Action.WORK);
  }

  public void endDay() {
    makeActions(workers, DwarvenMineWorker.Action.GO_HOME, DwarvenMineWorker.Action.GO_TO_SLEEP);
  }

  private static void makeActions(
      Collection<DwarvenMineWorker> workers,
      DwarvenMineWorker.Action... actions
  ) {
    workers.forEach(worker -> worker.action(actions));
  }
}

/**
 * The Facade design pattern is often used when a system is very complex or difficult to understand
 * because the system has a large number of interdependent classes or its source code is
 * unavailable. This pattern hides the complexities of the larger system and provides a simpler
 * interface to the client. It typically involves a single wrapper class which contains a set of
 * members required by client. These members access the system on behalf of the facade client and
 * hide the implementation details.
 *
 * <p>In this example the Facade is ({@link DwarvenGoldmineFacade}) and it provides a simpler
 * interface to the goldmine subsystem.
 当系统非常复杂或难以理解时，通常会使用Facade设计模式，因为该系统具有大量相互依赖的类，或者其源代码不可用。 这种模式隐藏了较大系统的复杂性，并为客户端提供了更简单的界面。 它通常涉及单个包装器类，其中包含客户端所需的一组成员。 这些成员代表外观客户端访问系统，并隐藏实现细节。
<p>在此示例中，外观为（{@link DwarvenGoldmineFacade}），它为金矿子系统提供了更简单的界面。
 */
public class App {

  /**
   * Program entry point.
   *
   * @param args command line args
   */
  public static void main(String[] args) {
    var facade = new DwarvenGoldmineFacade();
    facade.startNewDay();
    facade.digOutGold();
    facade.endDay();
  }
}

应用场景

spring jdbc中的外观模式

查看 org.springframework.jdbc.support.JdbcUtils

public abstract class JdbcUtils {
    public static void closeConnection(Connection con) {
        if (con != null) {
            try {
                con.close();
            }
            catch (SQLException ex) {
                logger.debug("Could not close JDBC Connection", ex);
            }
            catch (Throwable ex) {
                // We don't trust the JDBC driver: It might throw RuntimeException or Error.
                logger.debug("Unexpected exception on closing JDBC Connection", ex);
            }
        }
    }

    public static Object getResultSetValue(ResultSet rs, int index, Class<?> requiredType) throws SQLException {
        if (requiredType == null) {
            return getResultSetValue(rs, index);
        }

        Object value = null;
        boolean wasNullCheck = false;

        // Explicitly extract typed value, as far as possible.
        if (String.class.equals(requiredType)) {
            value = rs.getString(index);
        }
        else if (boolean.class.equals(requiredType) || Boolean.class.equals(requiredType)) {
            value = rs.getBoolean(index);
            wasNullCheck = true;
        }
        else if (byte.class.equals(requiredType) || Byte.class.equals(requiredType)) {
            value = rs.getByte(index);
            wasNullCheck = true;
        }
        else if (short.class.equals(requiredType) || Short.class.equals(requiredType)) {
            value = rs.getShort(index);
            wasNullCheck = true;
        }
        else if (int.class.equals(requiredType) || Integer.class.equals(requiredType)) {
            value = rs.getInt(index);
            wasNullCheck = true;
        }
        else if (long.class.equals(requiredType) || Long.class.equals(requiredType)) {
            value = rs.getLong(index);
            wasNullCheck = true;
        }
        else if (float.class.equals(requiredType) || Float.class.equals(requiredType)) {
            value = rs.getFloat(index);
            wasNullCheck = true;
        }
        else if (double.class.equals(requiredType) || Double.class.equals(requiredType) ||
                Number.class.equals(requiredType)) {
            value = rs.getDouble(index);
            wasNullCheck = true;
        }
        else if (byte[].class.equals(requiredType)) {
            value = rs.getBytes(index);
        }
        else if (java.sql.Date.class.equals(requiredType)) {
            value = rs.getDate(index);
        }
        else if (java.sql.Time.class.equals(requiredType)) {
            value = rs.getTime(index);
        }
        else if (java.sql.Timestamp.class.equals(requiredType) || java.util.Date.class.equals(requiredType)) {
            value = rs.getTimestamp(index);
        }
        else if (BigDecimal.class.equals(requiredType)) {
            value = rs.getBigDecimal(index);
        }
        else if (Blob.class.equals(requiredType)) {
            value = rs.getBlob(index);
        }
        else if (Clob.class.equals(requiredType)) {
            value = rs.getClob(index);
        }
        else {
            // Some unknown type desired -> rely on getObject.
            value = getResultSetValue(rs, index);
        }

        if (wasNullCheck && value != null && rs.wasNull()) {
            value = null;
        }
        return value;
    }
    // ...省略...
}

该工具类主要是对原生的 jdbc 进行了封装

Mybatis中的外观模式

查看 org.apache.ibatis.session.Configuration 类中以 new 开头的方法

public class Configuration {
    public Executor newExecutor(Transaction transaction, ExecutorType executorType) {
        executorType = executorType == null ? defaultExecutorType : executorType;
        executorType = executorType == null ? ExecutorType.SIMPLE : executorType;
        Executor executor;
        if (ExecutorType.BATCH == executorType) {
          executor = new BatchExecutor(this, transaction);
        } else if (ExecutorType.REUSE == executorType) {
          executor = new ReuseExecutor(this, transaction);
        } else {
          executor = new SimpleExecutor(this, transaction);
        }
        if (cacheEnabled) {
          executor = new CachingExecutor(executor);
        }
        executor = (Executor) interceptorChain.pluginAll(executor);
        return executor;
    }

    public ResultSetHandler newResultSetHandler(Executor executor, MappedStatement mappedStatement, RowBounds rowBounds, ParameterHandler parameterHandler,
          ResultHandler resultHandler, BoundSql boundSql) {
        ResultSetHandler resultSetHandler = new DefaultResultSetHandler(executor, mappedStatement, parameterHandler, resultHandler, boundSql, rowBounds);
        resultSetHandler = (ResultSetHandler) interceptorChain.pluginAll(resultSetHandler);
        return resultSetHandler;
    }
    // ...省略...
}

该类主要对一些创建对象的操作进行封装

Tomcat 中的外观模式

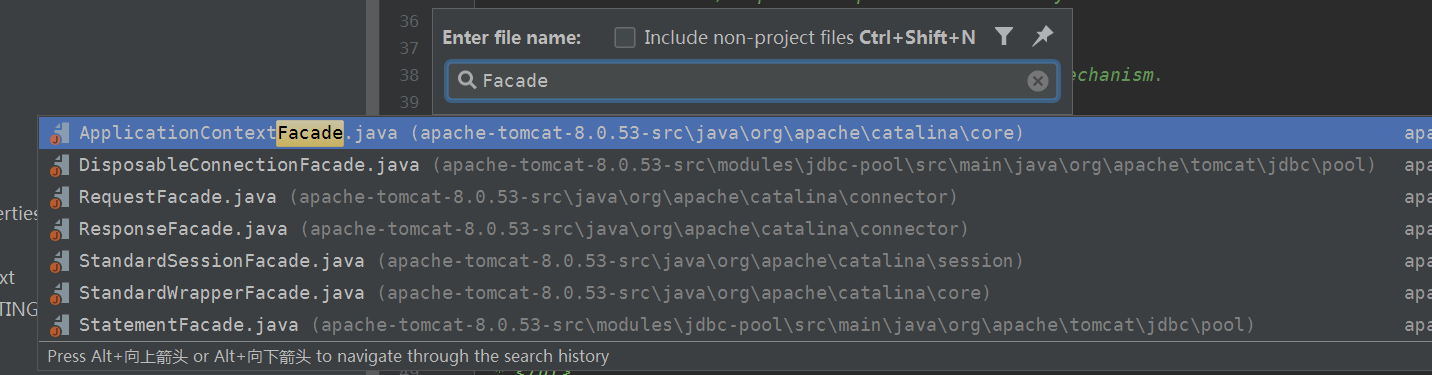

Tomcat 源码中大量使用了很多外观模式

org.apache.catalina.connector.Request 和 org.apache.catalina.connector.RequestFacade 这两个类都实现了 HttpServletRequest 接口
在 Request 中调用 getRequest() 实际获取的是 RequestFacade 的对象

protected RequestFacade facade = null;

public HttpServletRequest getRequest() {
    if (facade == null) {
        facade = new RequestFacade(this);
    }
    return facade;
}

在 RequestFacade 中再对认为是子系统的操作进行封装

public class RequestFacade implements HttpServletRequest {
    /**
     * The wrapped request.
     */
    protected Request request = null;

    @Override
    public Object getAttribute(String name) {
        if (request == null) {
            throw new IllegalStateException(sm.getString("requestFacade.nullRequest"));
        }
        return request.getAttribute(name);
    }
    // ...省略...
}

SLF4J 中的外观模式

SLF4J 是简单的日志外观模式框架，抽象了各种日志框架例如 Logback、Log4j、Commons-logging 和 JDK 自带的 logging 实现接口。它使得用户可以在部署时使用自己想要的日志框架。

SLF4J 没有替代任何日志框架，它仅仅是标准日志框架的外观模式。如果在类路径下除了 SLF4J 再没有任何日志框架，那么默认状态是在控制台输出日志。

日志处理框架 Logback 是 Log4j 的改进版本，原生支持SLF4J（因为是同一作者开发的），因此 Logback＋SLF4J 的组合是日志框架的最佳选择，比 SLF4J+其它日志框架 的组合要快一些。而且Logback的配置可以是XML或Groovy代码。

SLF4J 的 helloworld 如下：

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

public class HelloWorld {
  public static void main(String[] args) {
    Logger logger = LoggerFactory.getLogger(HelloWorld.class);
    logger.info("Hello World");
  }
}

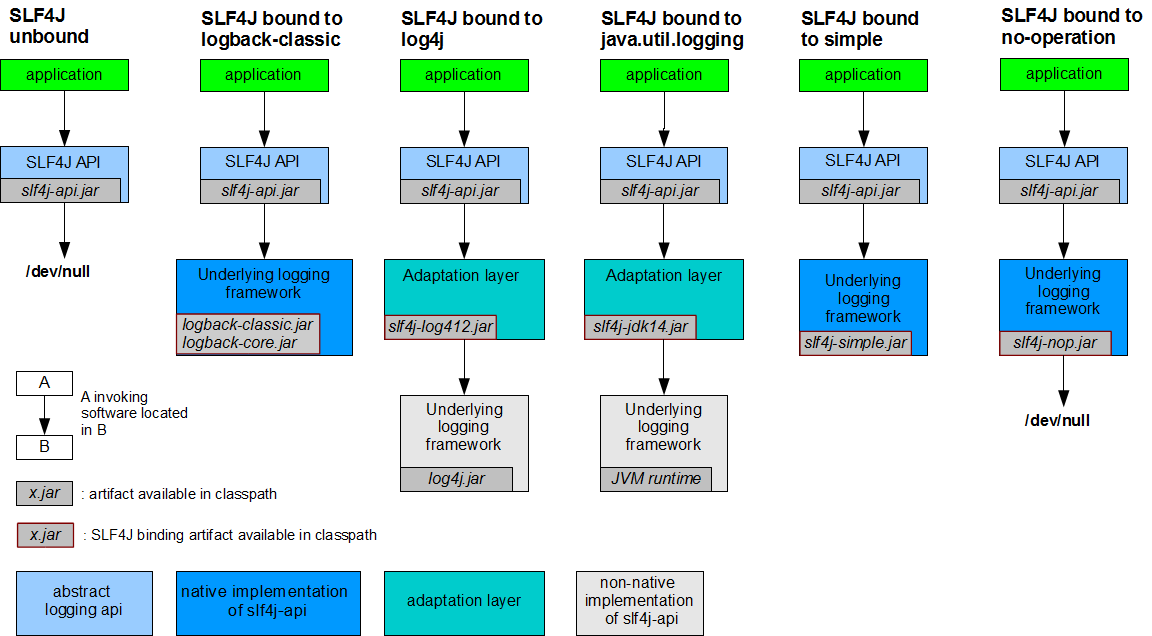

下图为 SLF4J 与日志处理框架的绑定调用关系

应用层调用 slf4j-api.jar，slf4j-api.jar 再根据所绑定的日志处理框架调用不同的 jar 包进行处理
