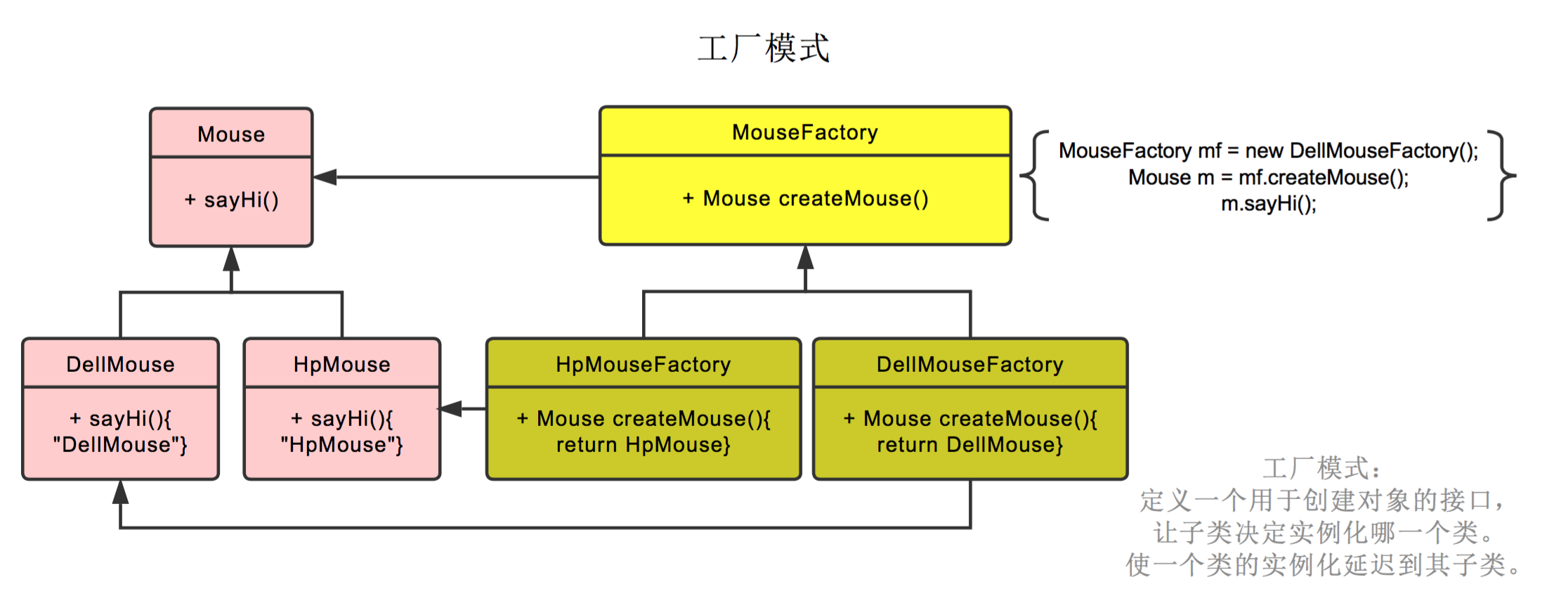

工厂方法模式

工厂方法模式也就是鼠标工厂是个父类，有生产鼠标这个接口。
戴尔鼠标工厂，惠普鼠标工厂继承它，可以分别生产戴尔鼠标，惠普鼠标。
生产哪种鼠标不再由参数决定，而是创建鼠标工厂时，由戴尔鼠标工厂创建。
后续直接调用鼠标工厂.生产鼠标()即可

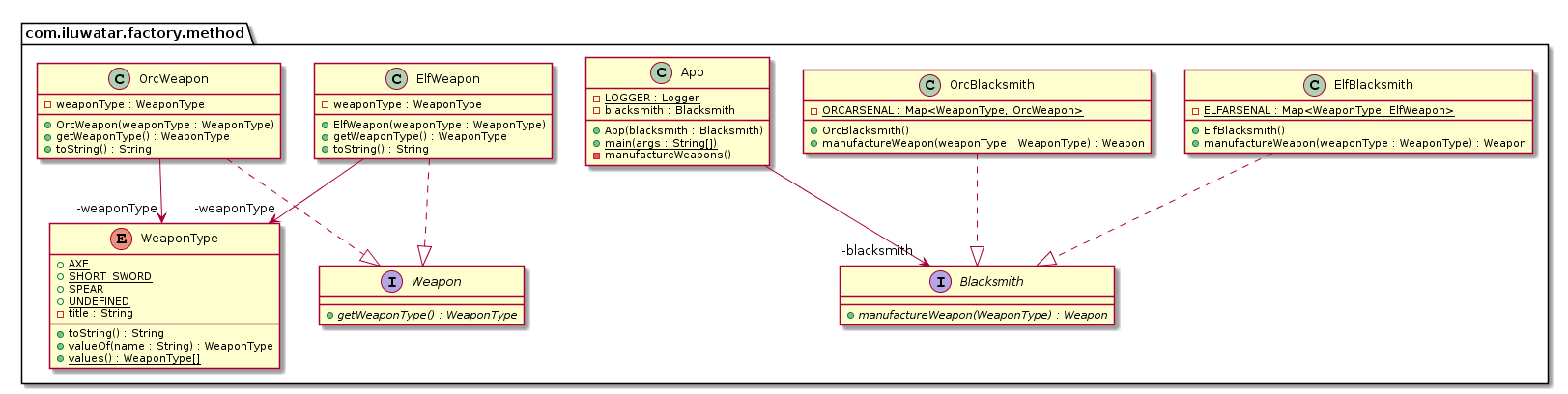

工厂方法设计模式UML类图

工厂方法设计模式java实现

/**
 * Weapon interface.
 */
public interface Weapon {

  WeaponType getWeaponType();

}

/**
 * WeaponType enumeration.
 */
public enum WeaponType {

  SHORT_SWORD("short sword"), SPEAR("spear"), AXE("axe"), UNDEFINED("");

  private String title;

  WeaponType(String title) {
    this.title = title;
  }

  @Override
  public String toString() {
    return title;
  }
}

/**
 * OrcWeapon.
 */
public class OrcWeapon implements Weapon {

  private WeaponType weaponType;

  public OrcWeapon(WeaponType weaponType) {
    this.weaponType = weaponType;
  }

  @Override
  public String toString() {
    return "Orcish " + weaponType;
  }

  @Override
  public WeaponType getWeaponType() {
    return weaponType;
  }
}

/**
 * ElfWeapon.
 */
public class ElfWeapon implements Weapon {

  private WeaponType weaponType;

  public ElfWeapon(WeaponType weaponType) {
    this.weaponType = weaponType;
  }

  @Override
  public String toString() {
    return "Elven " + weaponType;
  }

  @Override
  public WeaponType getWeaponType() {
    return weaponType;
  }
}

/**
 * The interface containing method for producing objects.
 */
public interface Blacksmith {

  Weapon manufactureWeapon(WeaponType weaponType);

}

/**
 * Concrete subclass for creating new objects.
 */
public class OrcBlacksmith implements Blacksmith {

  private static Map<WeaponType, OrcWeapon> ORCARSENAL;

  static {
    ORCARSENAL = new HashMap<>(WeaponType.values().length);
    Arrays.stream(WeaponType.values()).forEach(type -> ORCARSENAL.put(type, new OrcWeapon(type)));
  }

  @Override
  public Weapon manufactureWeapon(WeaponType weaponType) {
    return ORCARSENAL.get(weaponType);
  }
}

/**
 * Concrete subclass for creating new objects.
 */
public class ElfBlacksmith implements Blacksmith {

  private static Map<WeaponType, ElfWeapon> ELFARSENAL;

  static {
    ELFARSENAL = new HashMap<>(WeaponType.values().length);
    Arrays.stream(WeaponType.values()).forEach(type -> ELFARSENAL.put(type, new ElfWeapon(type)));
  }

  @Override
  public Weapon manufactureWeapon(WeaponType weaponType) {
    return ELFARSENAL.get(weaponType);
  }

}

/**
 * The Factory Method is a creational design pattern which uses factory methods to deal with the
 * problem of creating objects without specifying the exact class of object that will be created.
 * This is done by creating objects via calling a factory method either specified in an interface
 * and implemented by child classes, or implemented in a base class and optionally overridden by
 * derived classes—rather than by calling a constructor.
 *
 * <p>In this Factory Method example we have an interface ({@link Blacksmith}) with a method for
 * creating objects ({@link Blacksmith#manufactureWeapon}). The concrete subclasses (
 * {@link OrcBlacksmith}, {@link ElfBlacksmith}) then override the method to produce objects of
 * their liking.
 工厂方法是一种创新性的设计模式，它使用工厂方法来处理创建对象的问题，而无需指定要创建的对象的确切类。
这是通过调用工厂方法创建的对象来完成的，该方法可以在接口中指定并由子类实现，也可以在基类中实现，并有选择地覆盖
派生类-而不是通过调用构造函数。
<p>在此工厂方法示例中，我们具有一个接口（{@link Blacksmith}），其中包含用于创建对象的方法（{@link Blacksmith＃manufactureWeapon}）。 具体的子类（
{@link OrcBlacksmith}，{@ link ElfBlacksmith}），然后重写该方法以生成自己喜欢的对象。
 *
 */
public class App {

  private static final Logger LOGGER = LoggerFactory.getLogger(App.class);

  private final Blacksmith blacksmith;

  /**
   * Creates an instance of <code>App</code> which will use <code>blacksmith</code> to manufacture
   * the weapons for war.
   * <code>App</code> is unaware which concrete implementation of {@link Blacksmith} it is using.
   * The decision of which blacksmith implementation to use may depend on configuration, or
   * the type of rival in war.
   * @param blacksmith a non-null implementation of blacksmith
   */
  public App(Blacksmith blacksmith) {
    this.blacksmith = blacksmith;
  }

  /**
   * Program entry point.
   *
   * @param args command line args
   */
  public static void main(String[] args) {
    // Lets go to war with Orc weapons
    var app = new App(new OrcBlacksmith());
    app.manufactureWeapons();

    // Lets go to war with Elf weapons
    app = new App(new ElfBlacksmith());
    app.manufactureWeapons();
  }

  private void manufactureWeapons() {
    var weapon = blacksmith.manufactureWeapon(WeaponType.SPEAR);
    LOGGER.info(weapon.toString());
    weapon = blacksmith.manufactureWeapon(WeaponType.AXE);
    LOGGER.info(weapon.toString());
  }
}
